Description
Description

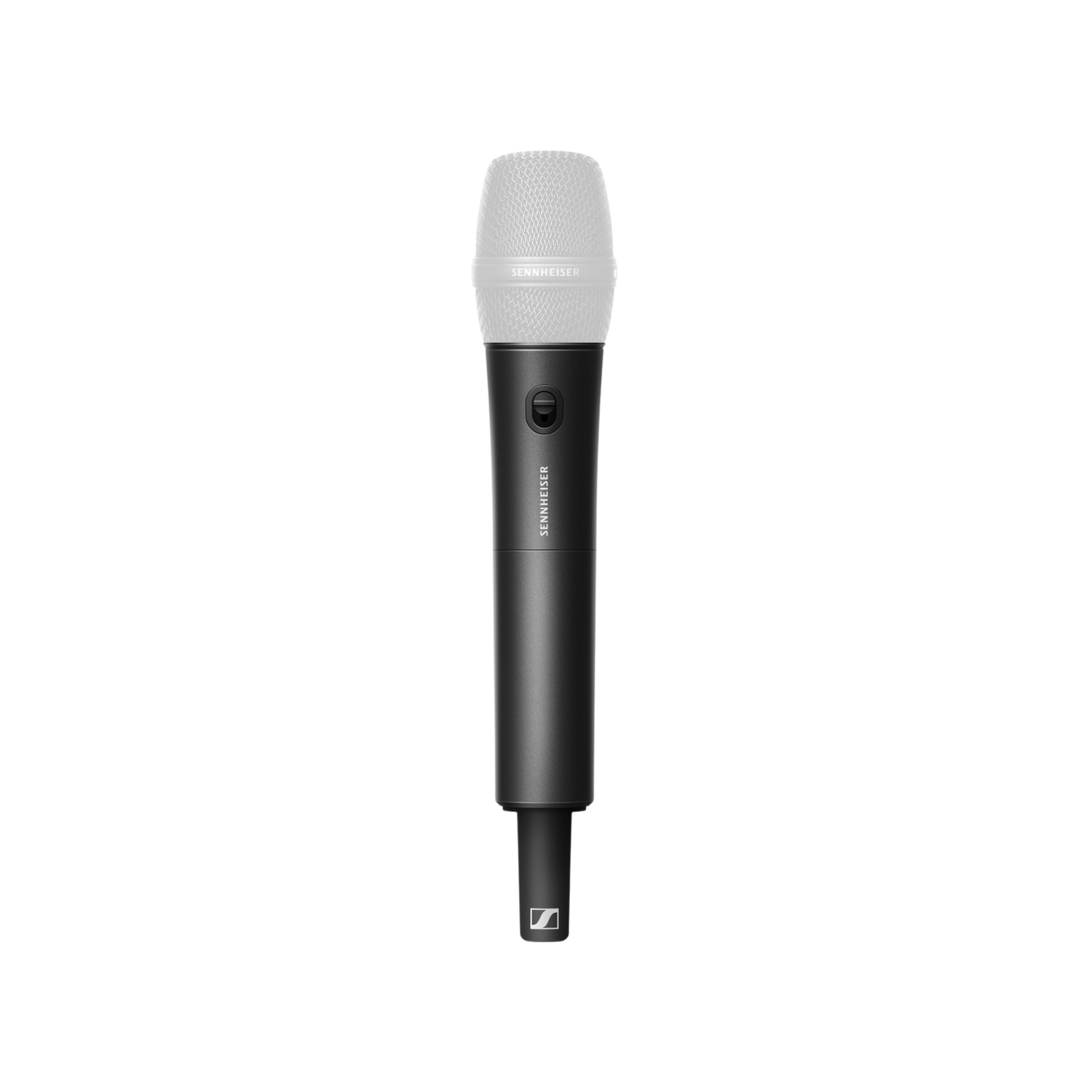

Sennheiser EW-D SKM-S (Y1-3) Digital handheld transmitter.
Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This handheld transmitter is compatible with a wide range of Sennheiser and Neumann microphone capsules.
Digital UHF handheld transmitter with mute switch for use with Evolution Wireless Digital. (Microphone Module available separately.)
This version (508799): Digital handheld transmitter. Includes (1) set AA batteries, microphone module not included, frequency range: (1785 - 1805 MHz) Frequency range: Y1-3 (1785 - 1805 MHz).
Effortless, worry-free wireless
Full control via Bluetooth using the Smart Assist app. Easy setup, monitoring, and troubleshooting—even for beginners. Smart algorithms handle frequency selection and syncing, minimizing dropouts and interference.
Rock-solid reliability
The most reliable UHF connection German-engineered build quality Pro-grade build quality with uncompromised fit and finish Lightweight, rugged transmitters and receivers Rack-mountable receivers for pro setups
Future-proof & upgradable
Integrates easily with other Evolution Wireless components Scales well for growing setups—from simple gigs to multi-channel stage productions Compatible with a wide range of Sennheiser mic capsules (on the handheld version)
Key features
- Digital transmission operating in the UHF spectrum greatly enhances range, reliability and scalability
- Smart Assist App connects via Bluetooth Low Energy for a streamlined setup and operation at a distance
- Auto scan creates reliable connections with minimal time and effort
- 134 dB audio input dynamic range eliminates need for sensitivity adjustments and preserves every detail
- Elimination of intermodulation enables channels to be placed in an equidistant tuning grid 600 kHz apart
- 56 MHz of tuning bandwidth and equidistant spacing enables up to 90 channels
- 2,240 selectable frequencies allow for fine tuning
- Lithium-Ion battery pack (sold separately) delivers up to 12 hours of operation (up to 8 hours of operation with 2x provided AA batteries)
Specifications
- Warranty: 2 years
- Transducer type: Dynamic
- Latency (ms): 1.9 ms
- Total harmonic distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Frequency range: 1785.200 - 1799.800 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB) @ 3 dBfs
- Dynamic range (>): 134 dB
- Max. sound pressure level: 154 dB SPL
- Pickup pattern: Cardioid
- Operating relative humidity (≤ %): 5 - 95 % (non-condensing)
- Battery capacity (Ah): 2.3
- Battery count: 2
- Battery voltage (V): 1.5
- Charging current (mA): < 300 mA
- Sensitivity: 2.1 mV/Pa
- Input voltage: 2.0 - 4.35 V
- Transmission power (mA): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) BLE: max. 10 mW EIRP
- Dimensions: 50 x 268 mm (incl. MMD 835 microphone module)
- Weight: 304 g
- Bluetooth transmission frequency: 2402 - 2480 MHz
What's in the box
- (1) EW-D SKM-S Handheld transmitter (capsule sold separately)
- (1) MZQ 1 Microphone clip
- (1) Quick guide
- (1) Safety guide
- (1) Manufacturer declaration sheet
Product code: 508799
