Description
Description

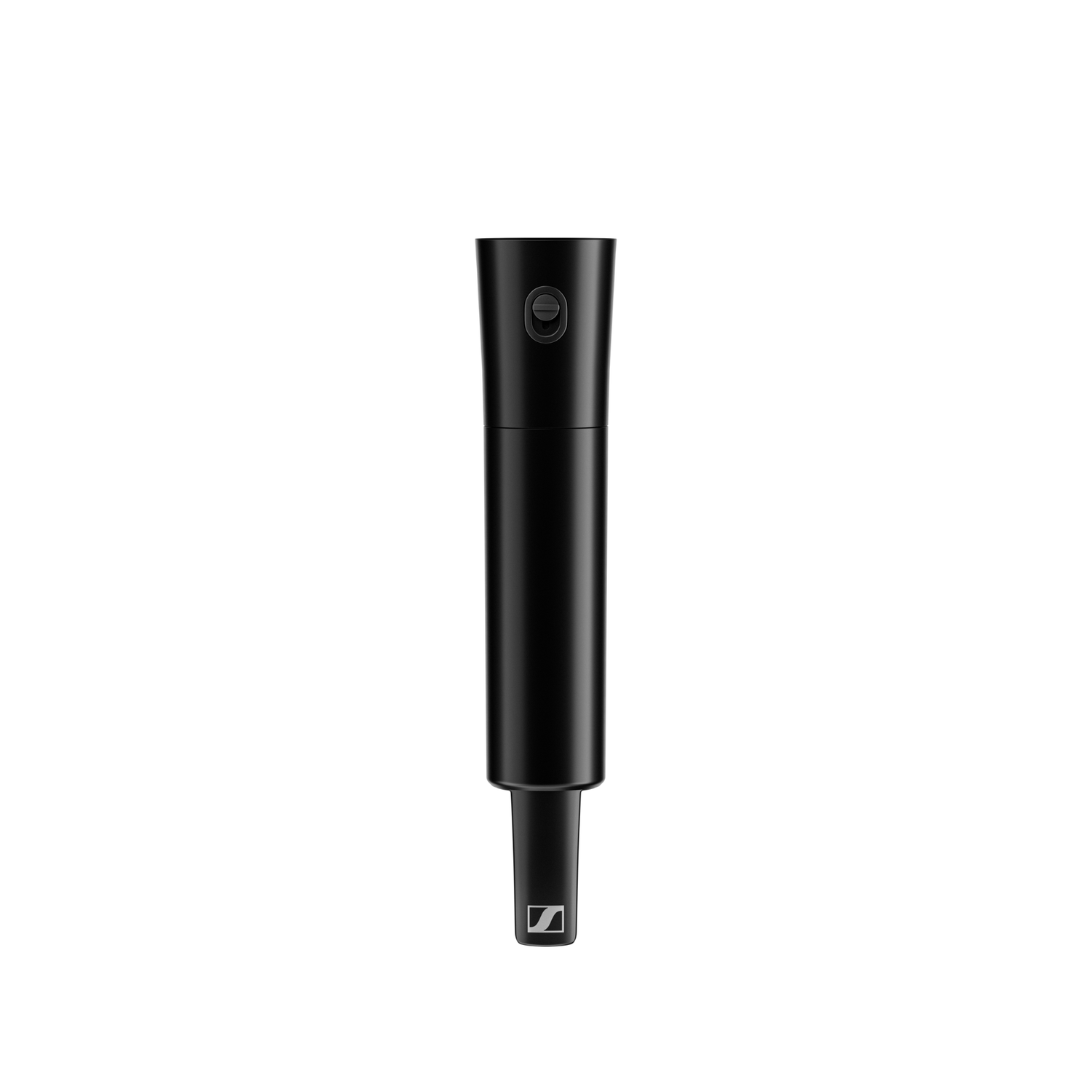

Sennheiser EW-DX SKM-S (Q1-9) Handheld transmitter with switch.
Digital wireless handheld transmitter with switch compatible with Evolution Wireless Digital systems. Rugged metal housing with standard capsule interface for a wide range of Sennheiser and Neumann microphone modules. Up to 12 hours of runtime, persistent E-Ink display and charging contacts for in-device charging.
This version (509412): Handheld transmitter with switch. Includes (1) EW-DX SKM-S, (1) MZQ1 microphone clip, and (2) AA batteries, frequency range: Q1-9 (470.2 - 550 MHz) Frequency range: Q1-9 (470.2 - 550 MHz).
Raising the bar
Evolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
Equidistant Spacing – simpler than it sounds
Evolution Wireless Digital features an equidistant tuning grid previously only found in Sennheiser's flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other. This simplifies frequency coordination for wireless beginners and seasoned professionals alike, and also contributes to the system’s scalability and impressively high channel count.
An engineer in your pocket
The power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app . Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
Key features
- 137 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- 10mW fixed RF power for up to 100 m/328 ft of range
- Charging contacts for in-device charging with CHG 70N charger (sold separately)
- Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
- Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
- Programmable mute switch (AF Mute, RF Mute, no function)
- Function buttons - control all the transmitter settings directly from the handheld including button lock function
- Digital audio trim
- Test tone generator
- Switchable LED configuration (On/Off)
- Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
- Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
- Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
- Metal housing
- Worldwide usage (specific frequencies subject to local RF regulations)
- Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
Specifications
- Warranty: 2 years
- Latency (ms): 1.9 ms
- Total harmonic distortion (THD): ≤ -60 dB for 1 kHz @ -3 dBfs input level
- Frequency range: 470.200 - 550.000 MHz
- Audio frequency response: 20 Hz - 20 kHz (-3 dB)
- Dynamic range (>): 134 dB
- Operating relative humidity (≤ %): 5 - 95 % (non-condensing)
- Battery capacity (Ah): 2.3
- Battery count: 2
- Battery voltage (V): 1.5
- Charging current (mA): < 300 mA
- Battery operating time (h): BA 70 rechargeable battery pack
- Input voltage: 2.0 - 4.35 V
- Transmission power (mA): Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP) LD mode: 10 mW ERP BLE: max. 10 mW EIRP
- Transmission method: 200 kHz
- Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
- Weight: 304 g
- Bluetooth transmission frequency: 2402 - 2480 MHz
What's in the box
- (1) EW-DX SKM-S Handheld transmitter (capsule sold separately)
- (1) MZQ 1 Microphone clip
- (2) AA Battery
- (1) Quick guide
- (1) Safety guide
- (1) Manufacturer declaration sheet
Product code: 509412
