Clear-Com  |  SKU: LQ-4W2

Clear-Com 2 channel 4-wire IP communications interface

Regular price £3,378.00

Clear-Com 2 channel 4-wire IP communications interface is backordered and will ship as soon as it is back in stock.


Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description

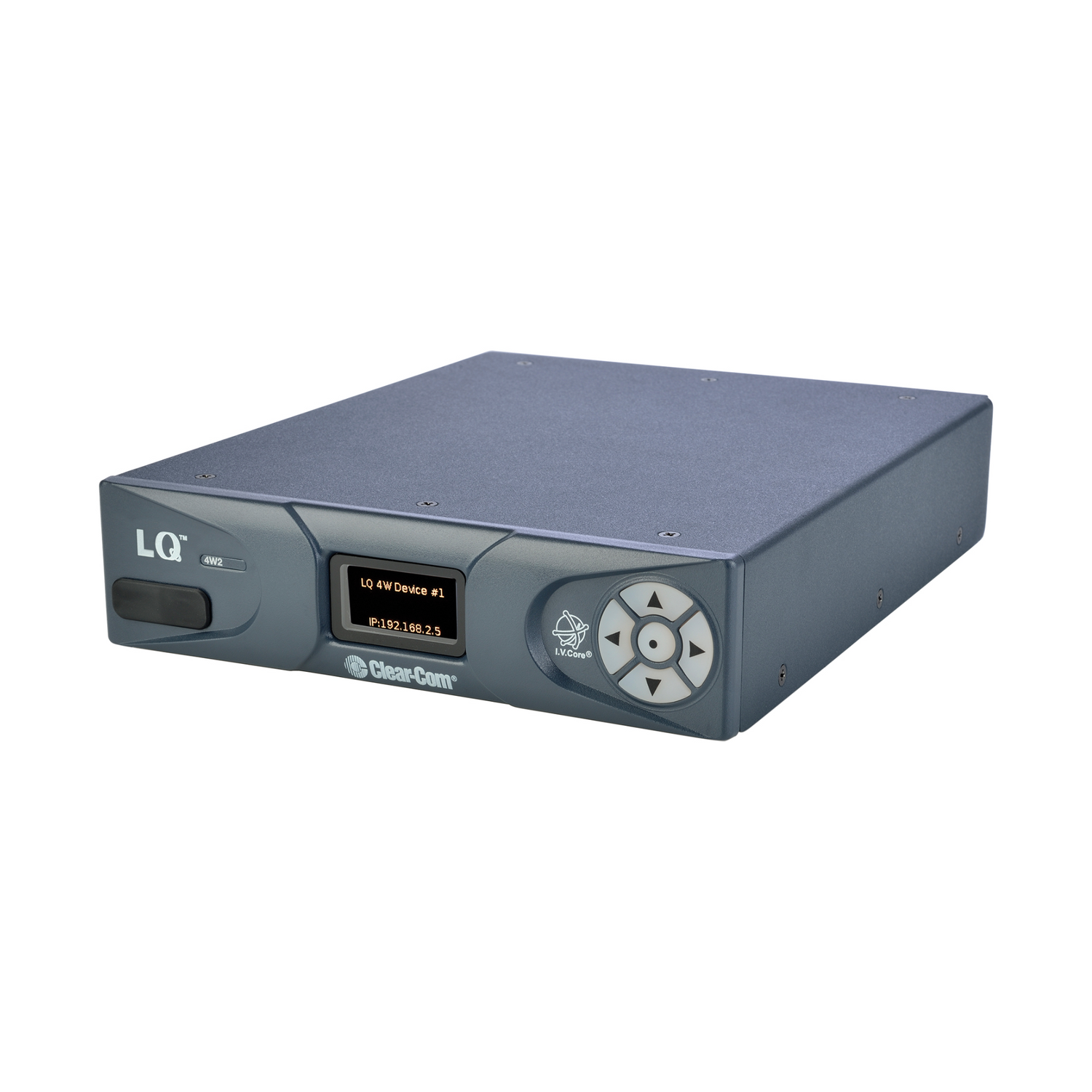

LQ portable 2-port 4-wire IP interface. Puts two 4-wire audio ports on the network, to link cameras, radios, matrices or other 4-wire kit over IP.

Key features

  • 2 × 4-wire ports on RJ45 etherCON; transformer-balanced, 0 dBu nominal (adjustable ±12 dB).
  • Connects over LAN, WAN or the internet; up to 6 LQ, Gen-IC or HMS-4X units form one Link Group (24 channels, 24 directs).
  • I.V. Direct links to Eclipse HX (IVC) and Arcadia built in; SIP, Agent-IC / Station-IC virtual clients and Gen-IC need an optional licence or subscription.
  • 2 × RJ45 etherCON LAN, bridged for daisy-chaining.
  • Power: PoE (802.3af Class 0) or the included 12V 24W plug-in adapter (453G028-1) with US, UK, EU, AUS and China plugs.
  • Portable 'throw-down' box: 173 × 46 × 215 mm, 0.83 kg.

Works well with: Eclipse HX, Arcadia, Station-IC and Agent-IC virtual clients.
