Description
Description

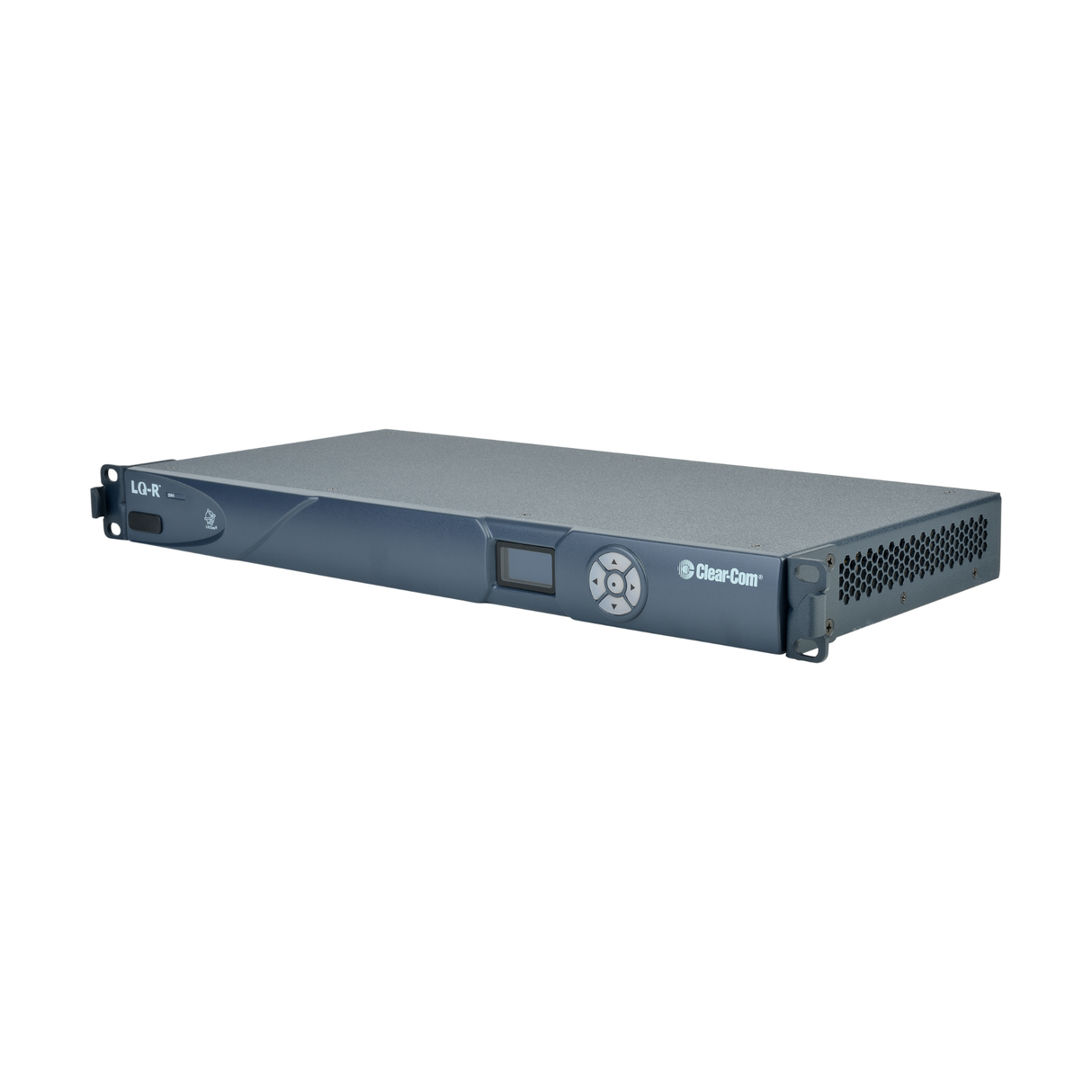

4-channel 2-wire partyline IP interface, 1RU. LQ-R2W4 links four channels of analogue partyline (Clear-Com or RTS TW) over the network, so beltpacks and stations on different sites can share channels, or join virtual clients.
Key features
- 4 × 2-wire channels with pass-through (8 × XLR-3 connectors). Clear-Com and RTS-TW, with call and remote mic kill.
- Partyline power: optional 250 mA per pair (A/B or C/D) at 26V DC, with optional termination per pair and user-initiated auto-nulling.
- IP linking: connects over LAN, WAN or the internet. Up to 6 LQ, Gen-IC or HelixNet HMS-4X units form one non-blocking Link Group, with 24 channels and 24 directs per Link Group.
- I.V. Direct links to Eclipse HX (IVC) and Arcadia are built in. SIP telephone ports (SIP8-LQ), Agent-IC and Station-IC virtual clients (VIRTUAL-IC-LQ / VIRTUAL-IC8-LQ) and Gen-IC need an optional licence or subscription.
- Network: 2 × RJ45 etherCON LAN ports, bridged so units can be daisy-chained.
- Power: 2 × 12V DC inputs, with 2 in-line power supplies included.
- Set-up: configured in the CCM web interface; yellow OLED front-panel display with 5 menu buttons.
- Size: 1RU, 483 × 46 × 224 mm, 1.95 kg.
Works well with: Encore and other 2-wire partyline beltpacks and stations, Arcadia, Avalon (which has no built-in 2-wire), Eclipse HX.
