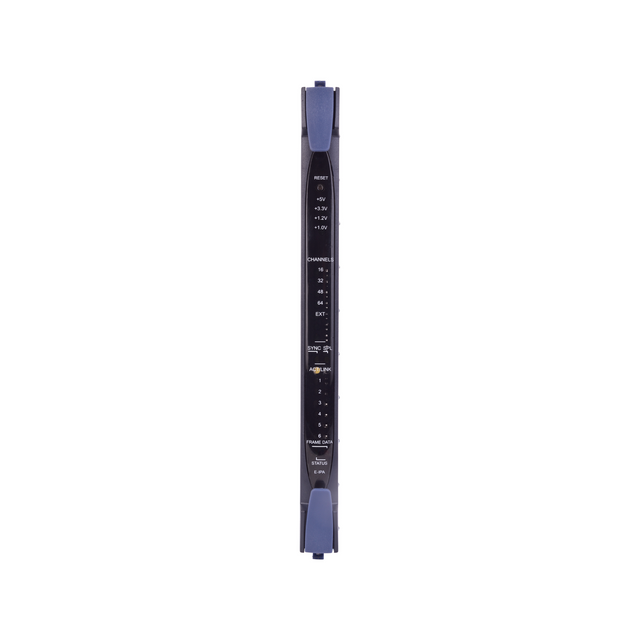

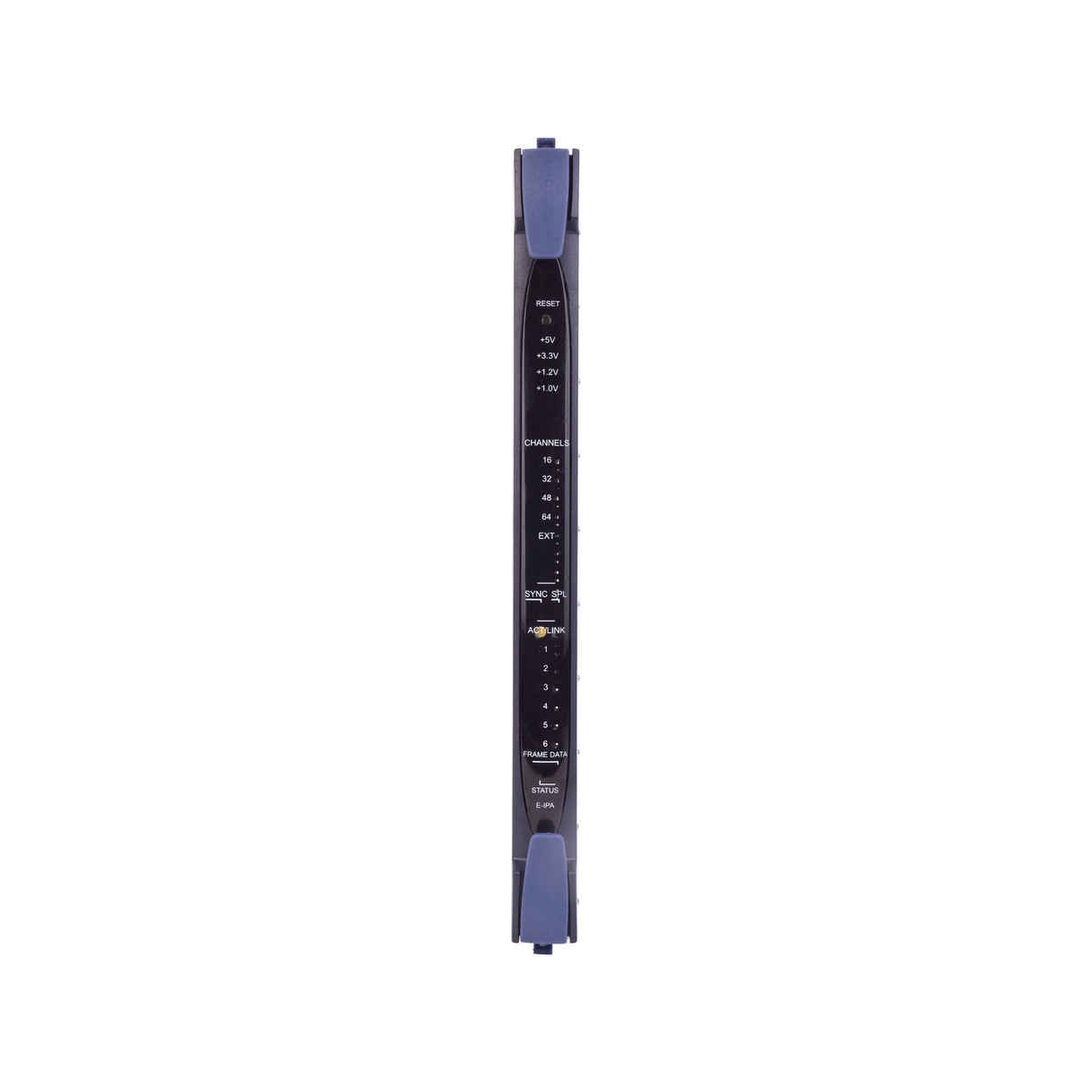

Clear-Com Eclipse-HX E-IPA card 16 ports
Clear-Com Eclipse-HX E-IPA card 16 ports is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
We offer fast and reliable delivery across the UK mainland:
Standard next-day delivery: £12.00
Free next-day delivery on orders over £240.00
Orders with backordered items will ship as soon as all items are back in stock.
Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.
In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.
Payment Options
Payment Options
Secure Card Payments
We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.
Purchase Orders & Credit Accounts
If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.
Clear-Com Eclipse-HX E-IPA card 16 ports is backordered and will ship as soon as it is back in stock.
Description
Description
Eclipse HX E-IPA IP card with 16 licensed ports. The networking card for Eclipse HX: it connects the matrix to wireless, IP panels, virtual clients, LQ and AES67 networks.
Key features
- 16 licensed IP ports, each configurable: FreeSpeak IP (and E1) transceivers, V-Series IrisX panels, 2X10 touch panels, Agent-IC and Station-IC clients, LQ, I.V. Direct/IVC, AES67/SMPTE 2110 and SIP (some as licensed features).
- Up to 64 FreeSpeak IP transceivers per card; 10 E1 transceivers per card through 2 FSII-SPL splitters (needs 32 or more licensed ports).
- Up to 64 AES67/SMPTE 2110 streams and 32 SIP clients per card, with feature licences.
- Connectivity: 4 × RJ45 LAN (100/1000), 2 × 1G SFP, plus 2 SFP ports for FreeSpeak E1 splitters.
- Redundant card options (N+1, N+N).
- Fits Eclipse HX Delta-Lite (2 per frame), Delta (3), Median (4) and Omega (5). Front and rear cards.
- Add capacity later with the E-IPA-UG-16-HX 16-port licence. Licences are fixed to the card.
Works well with: FSII-TCVR-IP-19-EU / FSE-TCVR-50-IP-EU transceivers, V-Series IrisX panels, SFP modules.
| Weight | 1.01 kg |
