Clear-Com  |  SKU: ECLIPSE-HX-OMEGA-16P

Clear-Com Eclipse HX-Omega with dual redundant CPUs, dual redundant PSUs and 16-ports (requires EHX

Regular price £47,832.00

Clear-Com Eclipse HX-Omega with dual redundant CPUs, dual redundant PSUs and 16-ports (requires EHX is backordered and will ship as soon as it is back in stock.


Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description

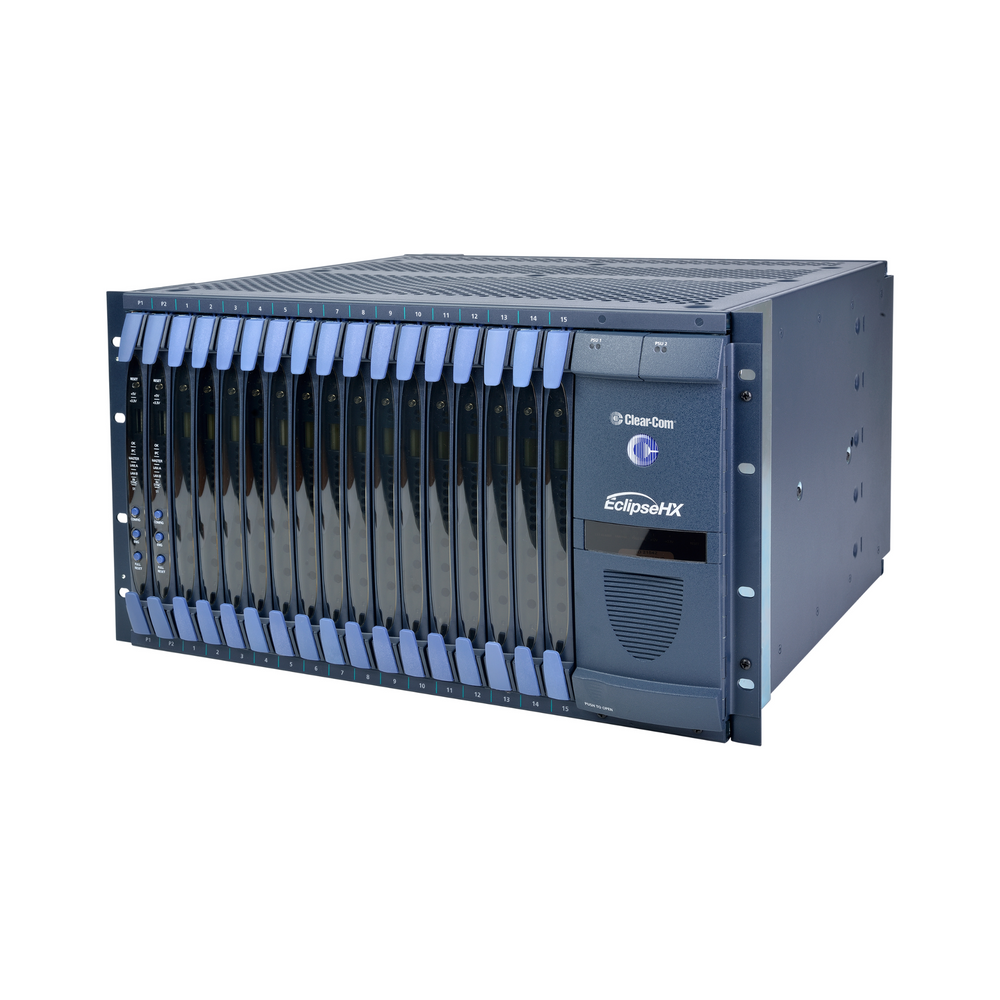

Eclipse HX-Omega matrix frame, 6RU, with 16 analogue ports. Clear-Com's largest Eclipse frame, with 15 card slots for the highest density, plus redundant CPUs and power supplies.

Key features

  • Supplied with 1 MVX-A16-HX analogue card (16 ports), 2 CPU cards and 2 power supplies.
  • 15 interface card slots; 496 timeslots/ports.
  • Card options: MVX-A16-HX (up to 15), E-IPA-HX (up to 5), E-DANTE64-HX and E-MADI64-HX (up to 7 each), E-FIB-HX (up to 2).
  • Connects to FreeSpeak wireless, V-Series Iris/IrisX keypanels, 2X10 touch panels, Agent-IC and Station-IC clients, I.V. Directs and Trunks, LQ interfaces and Arcadia.
  • 8 GPI (DB25F), 8 GPO (DB25M), alarm (DB9F) and 2 × RJ45 LAN.
  • Configured and managed with EHX software (required).
  • 482 × 267 × 410 mm; 20–35 kg depending on fit.

Works well with: E-IPA-HX cards, V-Series IrisX panels, FreeSpeak transceivers, EHX software.

Card maximums are for reference: Clear-Com asks that each configuration is checked with its Eclipse HX Power Calculator.


Item Attributes
Weight 35 kg
Dimensions 19 x 10.6 x 16in
