Nemesis Research  |  SKU: ACS-1

Nemesis ACS-1 Auto Switch Over

£1,792.99

Nemesis ACS-1 Auto Switch Over is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description

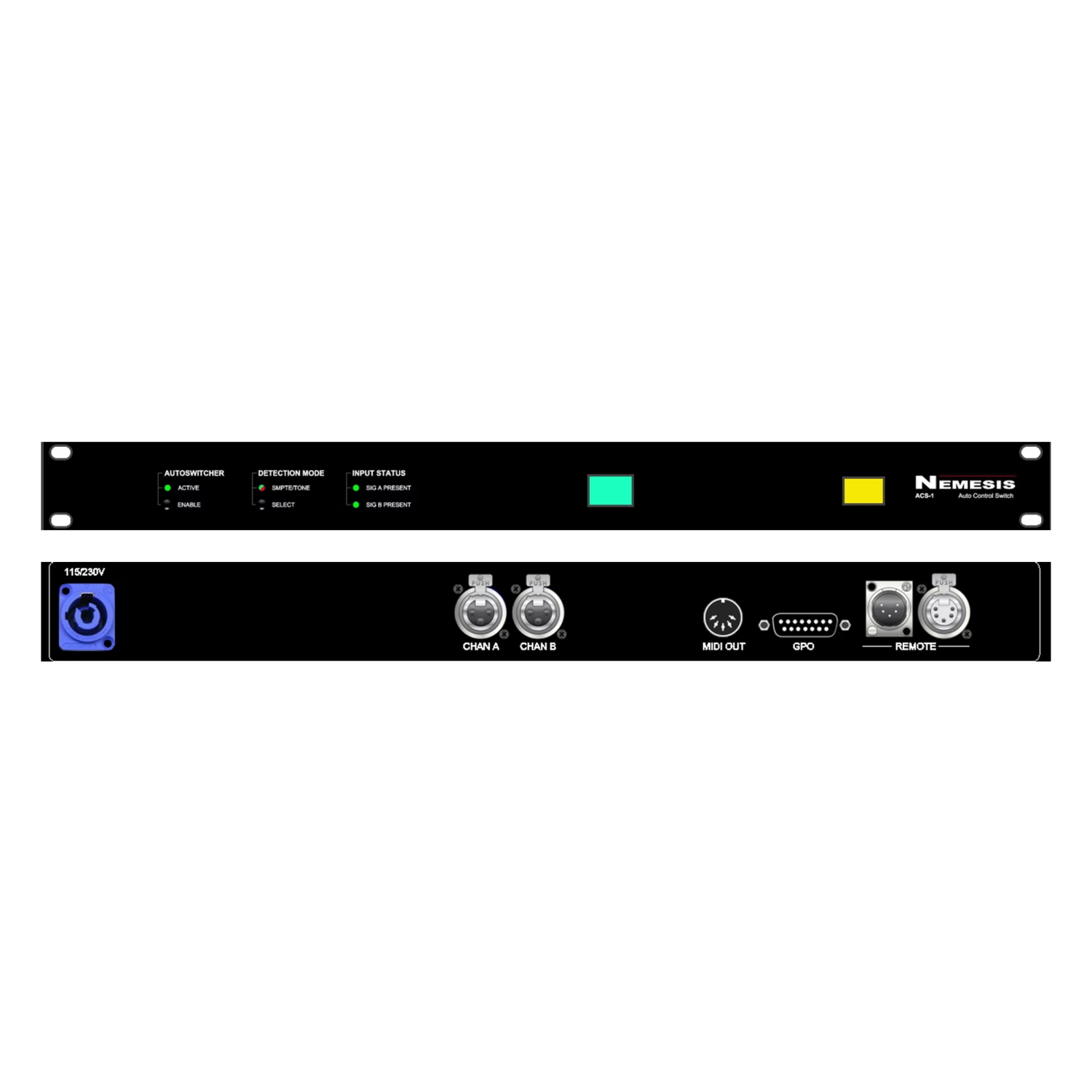

The Nemesis ACS-1 Auto Switcher is a 1U rack mount unit that automatically controls any of the Nemesis range of switchover units by detecting the presence of playback signals using either a 1 kHz tone or SMPTE time code.

Designed primarily for live concerts, stage shows and theatre where backing tracks are used for orchestration, vocals and sound effects, this allows you to set up a redundant backup system which automatically switches between two sources should a failure of one of the sources occur. There are 2 modes of operation:

  • Comparison (switches from A to B if input signals differ)
  • Signal Loss (switches from A to B if signal lost on A)

​The Time Code detection detects any change in forward direction timecode or frame errors. This prevents stuck buffers from frozen or crashed playback sources otherwise undetected in other systems using the simple presence of tone system.

Also included on the unit is a standard Nemesis 5-pin remote input, for connection to external remote buttons, and a MIDI output for use with MIDI controlled audio switchers.

The standard Nemesis 15-pin DSUB relay GPO can be connected to Nemesis or other audio changeover units.

Key features:
  • 2 modes of operation: Comparison (switches from A to B if input signals differ) Signal Loss (switches from A to B if signal lost on A)
  • Detects either 1Khz tone or valid running SMPTE
  • SMPTE detection detects any change in forward direction timecode or frame errors. This prevents stuck buffers from frozen or crashed playback sources otherwise undetected by the simple presence of tone.
  • MIDI output for control of MIDI based units such as RME MADI Bridge
  • Large 16×24mm A B front panel buttons to select source
  • Front Panel LEDs to show signal present and status
  • Powercon input for 115/230VAC operation
  • 2 × Balanced XLR input for audio/SMPTE from playback machines A & B
  • Standard Nemesis 5 pin remote input for connection to an external remote buttons
  • Standard Nemesis 5 pin XLR remote output to link to Nemesis CCS-2
  • Standard Nemesis 15-pin DSUB relay GPO for connection to Nemesis or other audio changeover units

Supplied in the box:
  • ACS-1
  • PowerCon to UK plug
