Nemesis Research  |  SKU: OSCA-R2

Nemesis OSCA-R2 2-Way Osc Programmable Button Box

£345.00

Nemesis OSCA-R2 2-Way Osc Programmable Button Box is backordered and will ship as soon as it is back in stock.

Delivery and Shipping

We offer fast and reliable delivery across the UK mainland:

Standard next-day delivery: £12.00

Free next-day delivery on orders over £240.00

Orders with backordered items will ship as soon as all items are back in stock.

Need your order by a specific time? Timed delivery options - such as pre-midday - are also available at an additional cost.

In-store collection available from Amber Sound, Unit 1, Devonshire Business Centre, EN6 3JR.

Payment Options

Secure Card Payments

We accept all major credit and debit cards, making it easy and convenient to pay for your order. Our payment process is fully secure and encrypted to ensure your details are protected at every step. Shop with confidence knowing your information is safe.

Purchase Orders & Credit Accounts

If you have a credit account with us, you can choose to pay by Purchase Order at checkout. Simply log in to your account to access this option and enjoy streamlined ordering and invoicing for your business.

Description

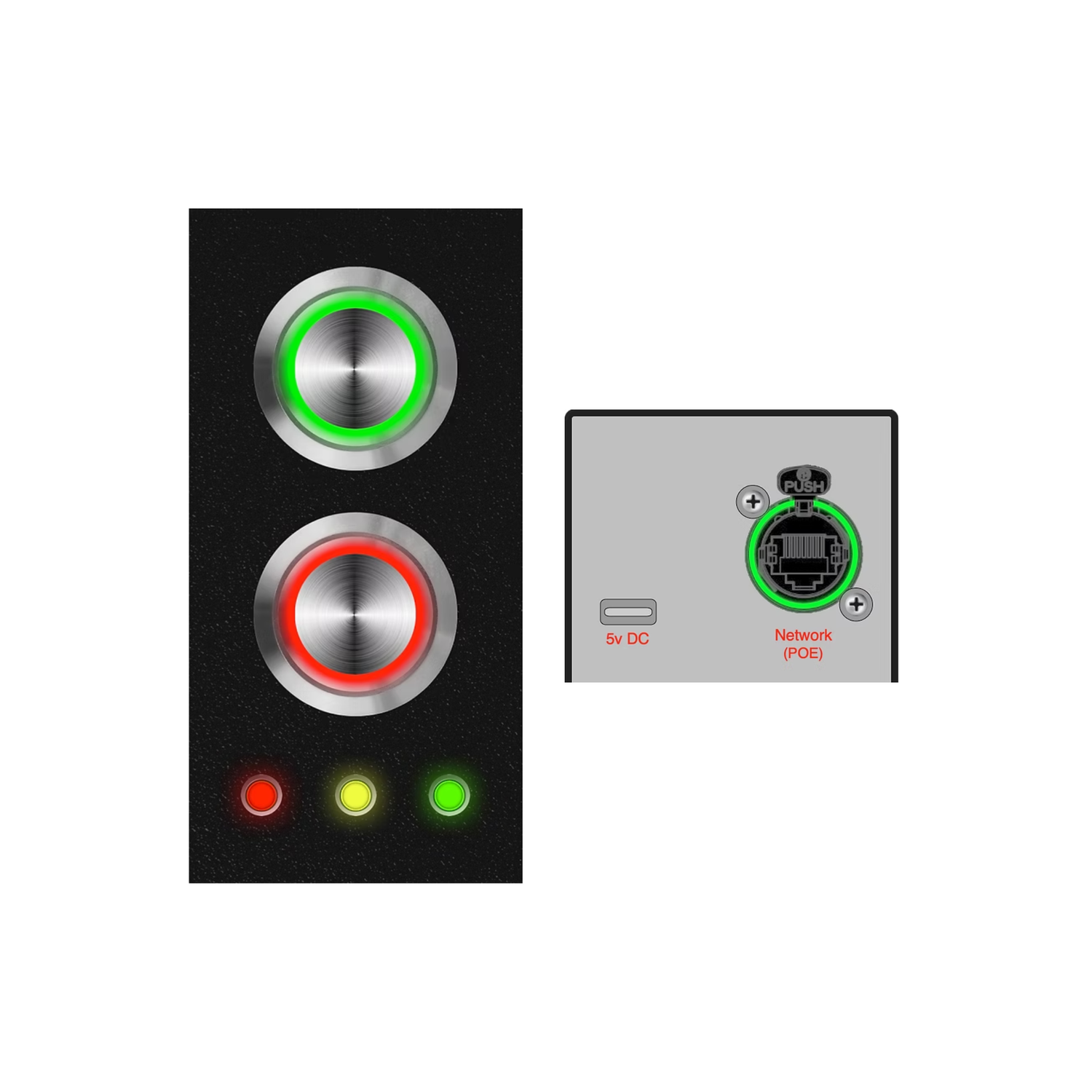

The OSCA-R2 is a next generation multiple command destination show control button box featuring OSC Network input, POE or 5v DC powering two large, high quality illuminated momentary push buttons (non- latching), and three independent OSC triggered LED indicators.

The two momentary push buttons that can be easily programmed to execute a huge range of OSC commands through simple programming of the onboard interface. Multiple OSCA-R2 button units can be deployed on a single OSC network, allowing complex and creative control scenarios to be achieved in a robust and coherent fashion. The button rims can be set to either illuminate on press (great for confirmation), constant illumination (great for in the dark), or OFF, with separate control of brightness.

As  world first the OSCA-R2 also sports Red, Amber and Green high quality LED indicators that can be set in the software to react to appropriate OSC commands found on the network. With a little bit of thought and programming the OSCA-R2 becomes a hugely powerful device, triggering commands, receiving status indications from other devices, even acting as an OSC driven traditional Cue-Light outstation if required.

The OSCA-R2 allows control only limited by your imagination of any OSC equipped device, including Qlab, CSC, OSC enabled mixing consoles, d&b’s soundscape, ETC EOS lighting consoles, ONLX Ctrl Suite, Yamaha's DME7 with scores of other manufacturers joining the OSC list.

Whats more is the OSCA-R2 can directly control devices that require a simple contact closure to activate a GPI relay command using a OSCA-O4 4 Channel OSC Relay Output box or OSCA-IO16 Pro as part of the OSC network. Applications range from sending commands for things like opening door locks, triggering Kabuki drops and a vast range of mechanical automation control applications.

With so much power at one's fingertips the OSCA-R2 features configuration backup and restore, so you never have to remember your settings.

The OSCA-R2 is incredibly easy to program - simply plug it into your laptop, type in the IP address and a simple but powerful user interface takes you through all the steps. If the Osca OSC network is connected to the internet, remote programming and triggering is possible via VPN, together with system updates and future upgrades. Fully compatible with all 3rd party OSC commands and the Nemesis OSCA  range.

After purchase OSCA-R2 can be upgraded to Pro Spec, adding additional power and functionality for the most demanding show control applications

Key features:
  • 2 independent brushed aluminium illuminated 30mm IP67 rated high quality tactile momentary push buttons
  • Red / Green controllable button ring lights
  • Variable “de-bounce” (0 > 2000ms)
  • 3 independent Red / Amber / Green LED's programmable to reflect OSC input commands from other devices
  • Each OSCA-R2 can hold up to 5 OSC network device destinations in its memory*
  • Each of the 2 buttons can send a message to 2 separate OSC network device destinations at the same time**
  • Simple yet powerful programming via embedded user interface (no need for set up programs or internet connection)
  • Presets for basic Qlab, CSC and Nemesis OSCA-O4 Relay Box operation
  • Advanced mode for free-form complex OSC string commands
  • Fully compatible with all 3rd party OSC commands and Nemesis Osca-O4 Relay Box
  • Config download, backup and restore
  • Internet enabled for updates and upgrades
  • DHCP served or fixed IP address
  • Industrial Ethercon network connector
  • Multicolour LED showing network and power status
  • Power over ethernet enabled (POE IEEE 802.3 compliant)
  • Alternative 5VDC powered (USB C-Type)

OSCA-R2-PRO upgrade:
*   Each OSCA-R2-PRO can hold up to 8 OSC network device destinations in its memory
** Each of the 2 Pro buttons can send 4 individual commands to 4 separate OSC network device destinations at the same time

Supplied in the box:
  • OSCA-R2
  • 1m CAT5 cable
